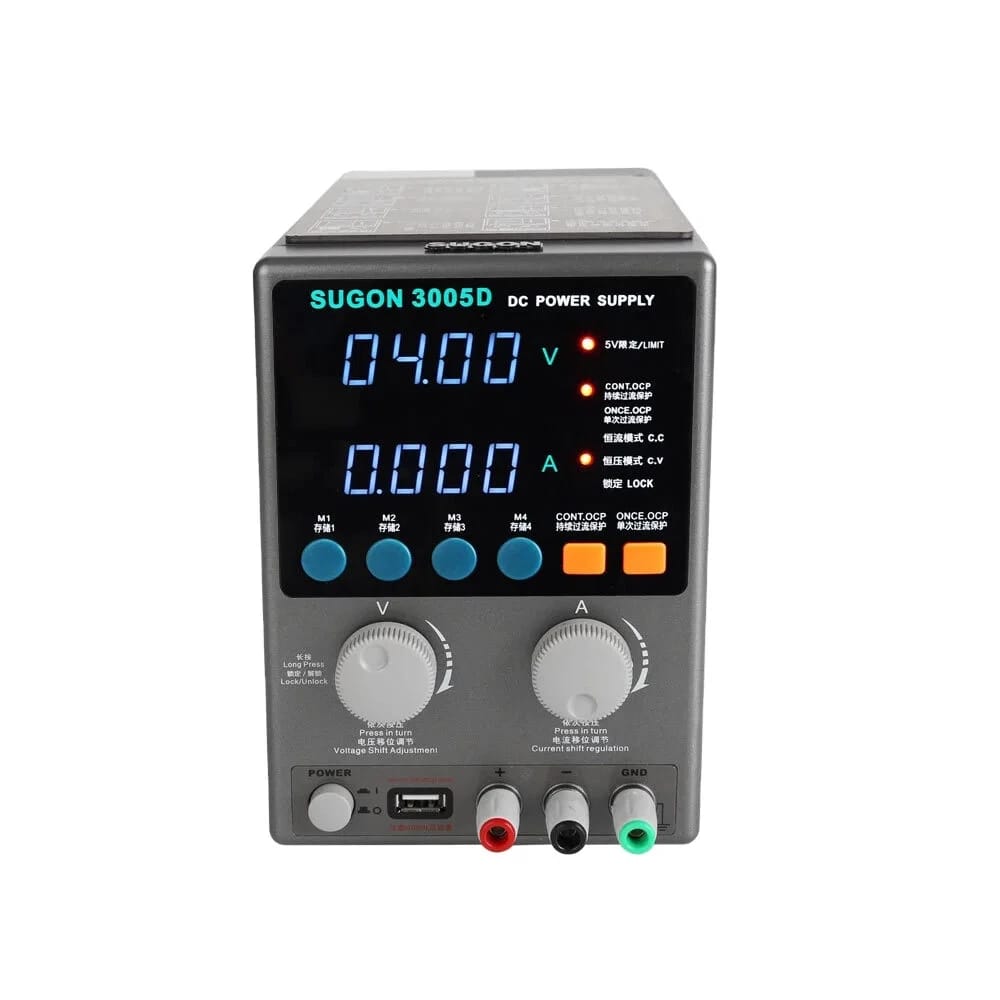

SUGON 3005D DC POWER SUPPLY FOR MOBILE DEVICES

Description

Sugon 3005D 30V / 5A Regulated Adjustable Digital DC Power Supply for Mobile Phone Repair
Features:
30V/5A full digital power control single
10mV/1mA high accuracy and resolution
Low noise and ripple
CV/CC given voltage and constant current mode
Highly reliable OCP, OVP, arbitrarily set protection
Built-in set of parameters stored
Outputs a switch control
Keypad lock to prevent misuse
An intelligent temperature control fan effectively reduces noise
To prevent damage to the load can be set to the value of over-voltage protection and over-current protection to prevent the voltage regulator from beyond the threshold
Recall and save a piece of data in an area at the press of a button

Specifications:
Input voltage: AC 110V/220V
Frequency range: 50-60Hz
Operating temperature: 32~104℉ (0~40ºC)
Operating humidity: <80%RH Storage temperature: 32-158℉ (0~70ºC) Storage humidity: < 70%RH Stable Voltage: Output Voltage Range: 0~30V Continuously adjustable Setup Resolution: 10mV Setup Accuracy: <0.05% +20mV Ripple: <1mV RMS Read back Accuracy: 10mV Temp. Coefficient: <0.1% + 10mV Read back, Temp. Coefficient: <100ppm+10mV Stable Current: Output Current Range: 0~5A Continuously adjustable Setup Resolution: 1mA Setup Accuracy: <0.1% +3mA Ripple: <3mA RMS Read back Accuracy: 1mA Temp. Coefficient: <0.1% + 5mA Read back, Temp. Coefficient: <100ppm+5mA
